Production introduction
Design condition of Air Cooled Water Chiller 20hp Horse Power Chiller:
(1). Design waterproof , suitable using outside and in house.
(2) Design working condition ambient temperature from -20C degree to +50C degree.
(3). Working condition: good air circulation place to discharge the heat.
(4). Remote and local control available.
(5). Power off - Auto strart up turn on function supported.
(6). Inlet and outlet pipe stainless steel;
Features of Air Cooled Water Chiller 20hp Horse Power Chiller
1). Brand and durable Scroll type compressor: Copeland, Danfoss, and Panasonic.
2).Three type evaporator support different working circuit.
A.Tank with coil, easy clearance
B. Shell and tube, high efficient
C. Brazed plate heat exchanger type( BPHE)
3). High efficient V type condenser: Screw copper tube covered aluminum fins
4). Expansion valve: Emerson
5). Iron and stainless steel pump for a different option
6). Buffer tank installed inside chiller optional
7). Inbuilt iron or stainless steel circulation water pump
8). Muti- protection devices: -Compressor inner protection,Over current protection,High/low pressure protection,Over temperature protection ,Flow switch,Phase sequence/phase missing protection,Low coolant level protection,Anti freezing protection ,Exhaust overheat protection
Durable import brand scroll compressor
Circulation water pump built inside chiller
English operation temperature controller, the setpoint is adjustable and Schneider electrical parts
Air cooled scroll chiller | |||||||||||||||
| Model | MG-1C | MG-2C | MG-3C | MG-5C | MG-6C | MG-8C | MG-10C | MG-12C | MG-15CD | MG-20CD | MG-25CD | MG-30CT | MG-40CF | MG-50CF | |
Cooling capacity | Kcal/h | 2322 | 4472 | 7310 | 11266 | 14964 | 18318 | 24510 | 26660 | 35948 | 47558 | 54352 | 71896 | 100104 | 110510 |
| kw | 2.7 | 5.2 | 8.5 | 13.1 | 17.4 | 21.3 | 28.5 | 31 | 41.8 | 55.3 | 63.2 | 83.6 | 116.4 | 128.5 | |
| power | kw | 1.42 | 2.4 | 3.53 | 5.61 | 6.64 | 8.52 | 10.83 | 12.53 | 16.31 | 21.27 | 24.35 | 32.33 | 41.66 | 49.65 |
| Power input | 1PH-220V-50Hz | 3PH-380V-50HZ | |||||||||||||
Refrigerant | Type | R22/R410a | R22/R407C | ||||||||||||
| Control | Thermostatic expansion valve | ||||||||||||||
Compressor | Type | Rotor type | Hermetic scroll type | ||||||||||||
| kw Power | 0.88 | 1.7 | 2.95 | 4.2 | 5.4 | 7.4 | 9.05 | 10.6 | 6*2 | 9.05*2 | 10.6*2 | 9.05*3 | 9.05*4 | 10.6*4 | |
Evaporator | Type | SS Tank with coil or Shell and tube | |||||||||||||
| m³/h Water flow | 0.46 | 0.89 | 1.46 | 2.25 | 2.98 | 3.65 | 4.89 | 5.31 | 7.17 | 9.48 | 10.83 | 14.33 | 19.95 | 22.03 | |
| L Capacity | 20 | 40 | 50 | 70 | 70 | 120 | 200 | 200 | 270 | 350 | 350 | 450 | 580 | 580 | |
Inlet/Outlet | DN25 | DN25 | DN25 | DN32 | DN32 | DN40 | DN40 | DN40 | DN50 | DN50 | DN50 | DN65 | DN65 | DN65 | |
Condenser | Type | High-efficiency hydrophilic aluminum foil finned type | |||||||||||||
| kw Power | 0.15 | 0.19 | 0.24 | 0.52 | 0.52 | 0.24*2 | 0.46*2 | 0.46*2 | 0.55*2 | 0.78*2 | 0.78*2 | 1.32*2 | 0.78*4 | 0.78*4 | |
pump | Type | High efficiency, low noise centrifugal water pump or SS water pump | |||||||||||||
| kw Power | 0.37 | 0.37 | 0.37 | 0.55 | 0.55 | 0.55 | 0.55 | 0.55 | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 | 2.2 | |
| m Lift | 19 | 18 | 24 | 25 | 24 | 20 | 20 | 20 | 20 | 20 | 20 | 21 | 20 | 19 | |
Protection System | Compressor overheat protection, high/low pressure protection,phase sequence/missing protection, flow rate protection, anti-frozen protection. | ||||||||||||||
Dimension | mm L | 500 | 600 | 1120 | 1220 | 1220 | 1430 | 1610 | 1610 | 1870 | 2120 | 2120 | 2700 | 2300 | 2300 |
| mm W | 500 | 600 | 600 | 690 | 690 | 780 | 820 | 820 | 900 | 1000 | 1000 | 1120 | 1860 | 1860 | |
| mm H | 720 | 1150 | 1200 | 1200 | 1200 | 1450 | 1500 | 1500 | 1600 | 1720 | 1720 | 1800 | 1800 | 1800 | |
| Wight | kg | 70 | 110 | 150 | 200 | 230 | 310 | 450 | 500 | 750 | 850 | 900 | 1150 | 1350 | 1600 |

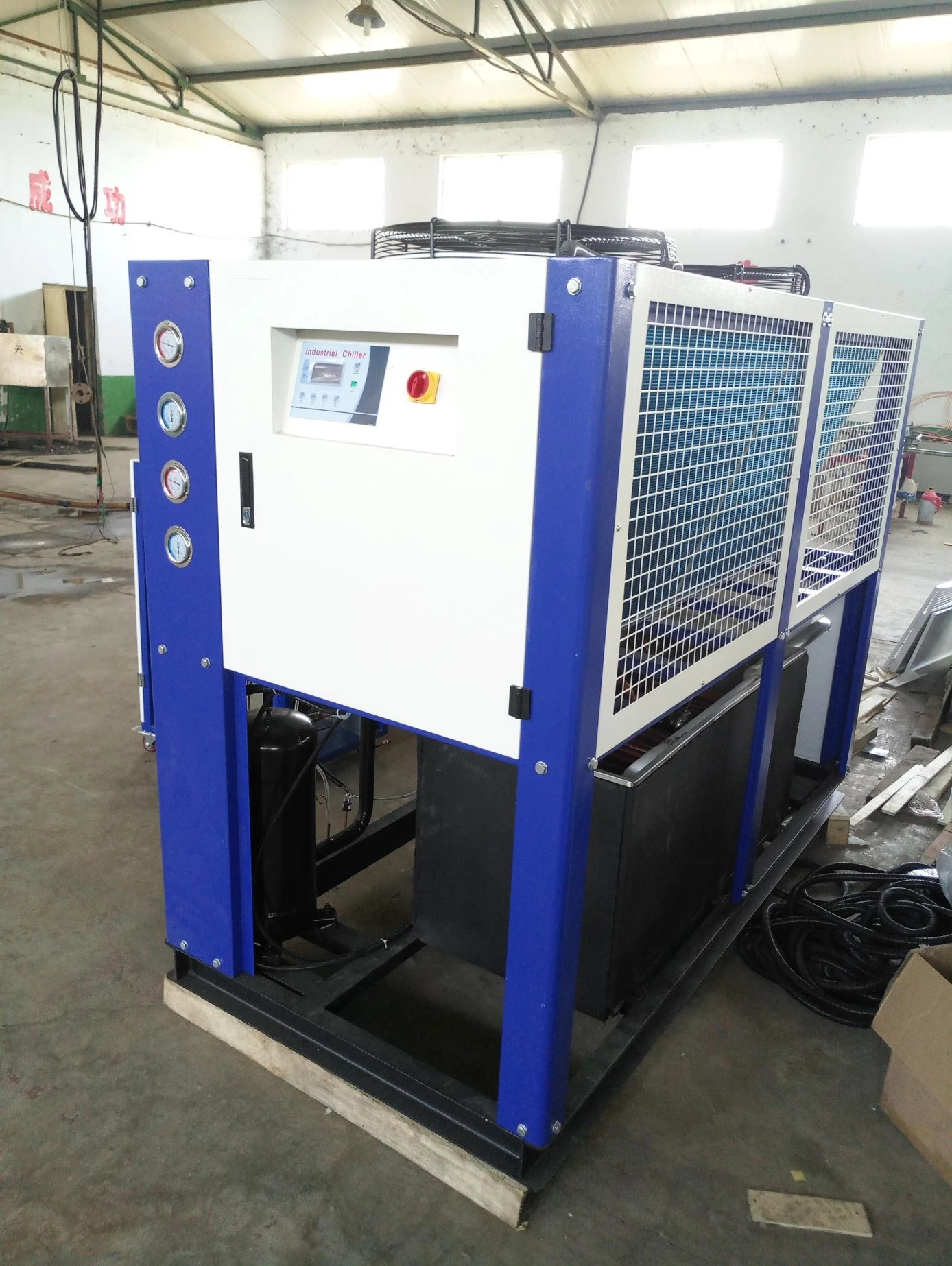

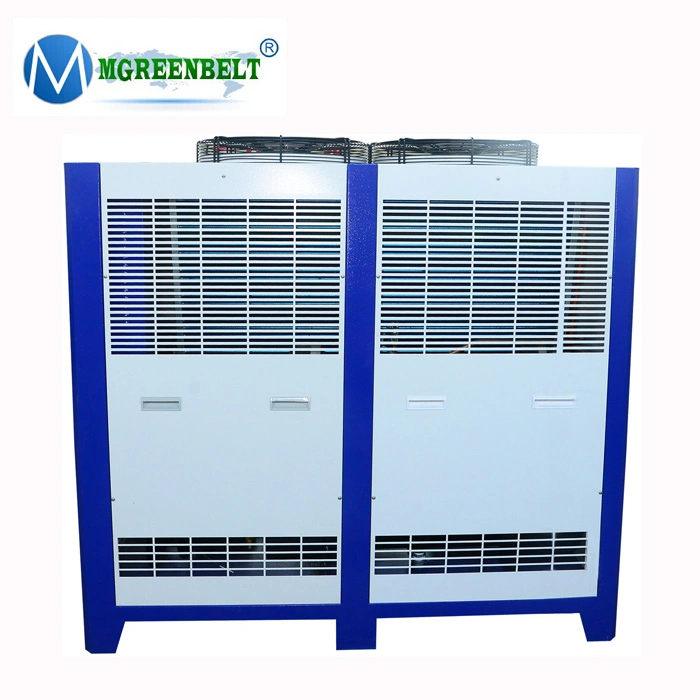

Product show
User's site
Certificate
Exbihition
Packing and shipment
Company introduction
Mgreenbelt specializes in innovating and Manufacturing of industrial water chillers used in plastic, electronics, chemical, pharmaceutical, food processing and other industries. Our portfolio comprises of air cooled scroll/screw chiller, water cooled scroll/screw chiller.
We have already provided our equipment and technical support to 3500 domestic and international factories.Now our product is highly recognized by customers from all over the world.
Send me your detailed requirements, we will work out
a professional solution suitable for you promptly!
